Model 15AC

THE SEDAN'S HISTORY

When the sale numbers on the two-place private airplane market began to drop, Aeronca decided to enter the race with a new, 4-seat design. It was called the 15AC Sedan. In order to keep the engineering and production cost low and to have the plane quickly available on the market, the strategy was to use as many parts as possible that were already at hand from the previous 2-seat models. The Sedan would eventually be sold for only $4395!

nc1054f
1948 Sedan, NC1054F © Gareth Gilson
Click on picture to enlarge


The 15AC prototype first flew in 1947. Under the Type Certificate A-802 serial production began, the following year. During 1948, the Sedan was also tested on EDO 2000 floats and certified as a seaplane, called the S15AC Sedan. In spite of the C-145 engine's modest 145 hp for float operation, the S15AC proved to be a dependable, rugged and easy to maintain seaplane. Between 1948 and 1951, a total of 561 Sedans were built. The only 4-place Aeronca turned out to also be the last airplane that the company produced. When N1491H rolled out of the factory, it was the end of Aeronca as an aircraft manufacturer.
s15ac
S15AC, N1261H, over Fort Gibson Lake, OK © Gene Barton
Click on picture to enlarge


Would you believe, that, while Aeronca produced those 561 Sedans, within only 4 years, it took Airbus Industries 35 years, from 1972 until 2007, to build the exact same number of Airbus A300?! Well, ok, it is slightly bigger....
a300b_1
Airbus A300B © Airbus Industries
Click on picture to enlarge


The Sedan as a record setter! During the postwar years, when many military airfields were abandoned, two cities, Fullerton in California and Yuma in Arizona, both with such bases employing large numbers of their citizens, discovered the airplane as a means for propaganda. They used Sedans, the "Sunkist Lady" and the "City of Yuma", to set flight duration records: 1008 hours (42 days) and 1124 hours (47 days) nonstop aloft! This caught the US people's and the politicians' attention. The message was simple: "Save our air bases and jobs!" It worked: Flight operations continued on both airfields! Today, they are known as the Fullerton Municipal Airport (General aviation) and the jointly used, civil and military Yuma International Airport/Marine Corps Air Station (MCAS) Yuma.
sunkistlady
Sunkist Lady © Unknown
Click on picture to enlarge


Today, an estimated 260 Sedans are still airworthy and flying. Most of them in Alaska, where they are used as bush planes, some on floats and some with more powerful engines. Quite a few are based in the lower 48 states. Only a handful has left the USA. Some to South America. Here in Europe, there are six, with only three of them currently flying: G-AREX (flying in the UK), EI-BKC (flying in Ireland), N915TC (under restoration in Ireland), EI-BJJ (stored in Ireland and in need of a rebuild), HB-ETB (under restoration in Switzerland) and N1331H (flying in Switzerland).
hbetc
HB-ETC (now N915TC) © Emil Röllin
Click on picture to enlarge


THE SEDAN'S CONSTRUCTION

While the Sedan's fuselage and stabilizers are of conventional steel tube, wood and fabric construction, utilized on all the earlier Aeronca models, the wing is all metal with a single spar. The ailerons are built up of aluminum ribs and then covered in fabric, though. At the time, this was quite a diversion from the previous Aeronca standard of fabric covered wood and metal construction throughout the entire aircraft.
construction

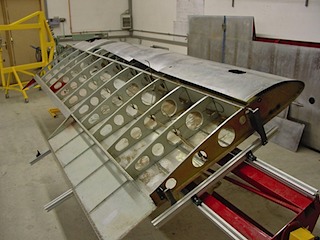

All-Metal Wing Construction © Matthias Sieber
Click on picture to enlarge



THE SEDAN'S DIMENSIONS AND TECHNICAL DATA

Wingspan: 37'6" (11,43 m)
Length: 25'3" (7,70 m)
Height in 3-point-attitude: 7'00" (2,13 m)
Height in level attitude: 10'4" (3,15 m)
Number of seats: 4
Empty weight: 1150 lbs (535 kg)
Useful load: 900 lbs (395 kg)
Maximum take-off weight: 2050 lbs (930 kg)
Fuel capacity: 2x 18 gal (2x 68 liters)
topview

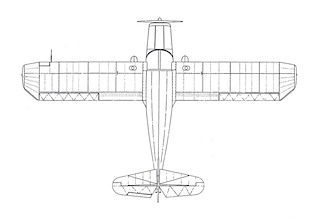

Sedan Top View
Click on drawing to enlarge



THE SEDAN'S ENGINE

The smooth-running 6-cylinder Continental C-145 (or O-300) powerplant used on the Sedan delivers 145 hp. An STC for a 4-cylinder Lycoming O-360, 180 hp upgrade is available from Burl's Aircraft in Chugiak, Alaska. For this modification the original engine cowl is replaced by a fiberglass Piper Cherokee cowl.
o300
Continental O-300-A Engine © Matthias Sieber
Click on picture to enlarge



THE SEDAN'S PERFORMANCE

performance

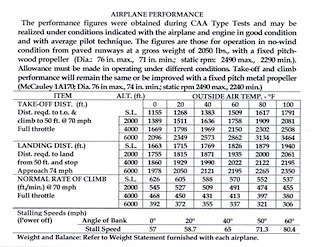

Excerpt from Aircraft Flight Manual
Click on table to enlarge



THE SEDAN'S FLIGHT CHARACTERISTICS

The NACA 4412 airfoil section, combined with a huge wing surface (no flaps), provides high lift and STOL (Short Take-Off and Landing) capabilities, while limiting the cruising speed to a moderate 105 mph. Ask any Sedan pilot and he or she will praise its arrow-like, stable flight characteristics and docile handling.
flight characteristics
The Flight Characteristics © Monika Sieber
Click on picture to enlarge
